IPScan XE

Secure IP Address Management
Layer 2 Network Access Control Solution

IPScan is an IP/MAC resource management and network security solution that enables IT managers to automate the IP/MAC resource management process.
IPScan controls network access of any device that uses IP addresses.
Utilizing our powerful blocking technology, IPScan ensures that unknown and unauthorized IP/MAC addresses are prevented from accessing the network.
By deploying IPScan into your network, you can centrally manage distributed IP/MAC address resources more safely, effectively and efficiently.
IPScan provides IP-enabled organizations with valuable security, availability, compliance, operational efficiency benefits and increased ROI.
IPScan is deployed by hundreds of large enterprises, service providers, government, military agencies and educational institutions.

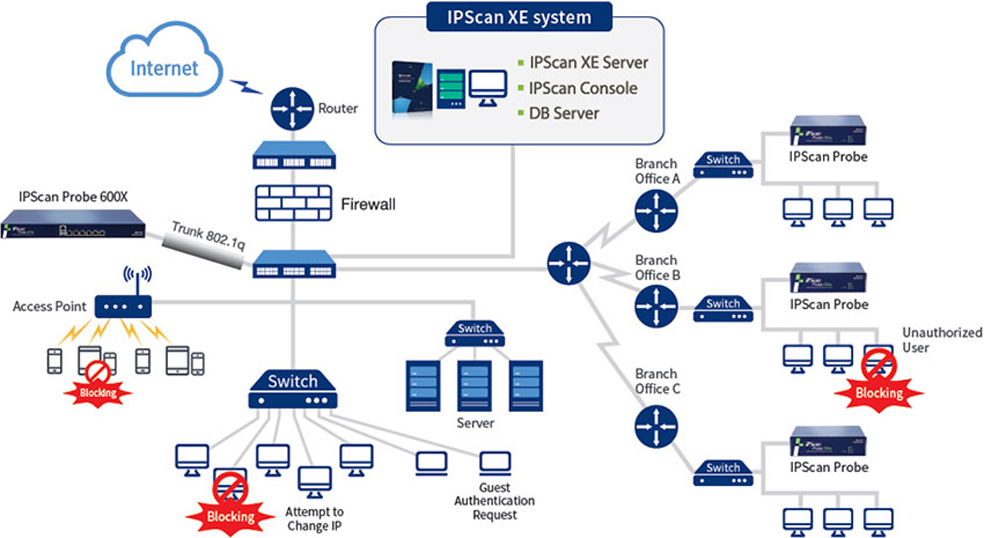

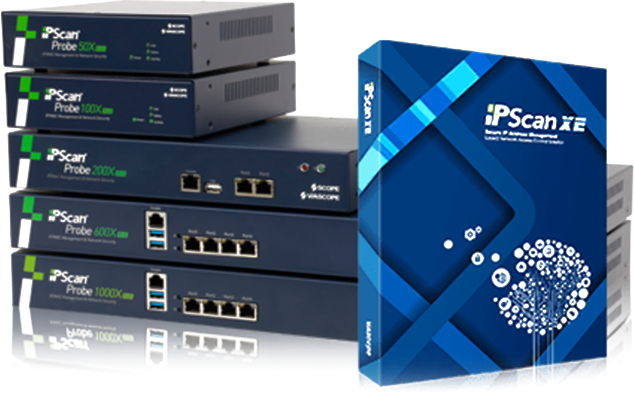

IPScan consists of four components: (1) administrative console software, (2) centralized server, (3) database, and (4) distributed hardware; probes.
IPScan is the only solution that provides complete control over all of your IP/MAC access points in your network.
IPScan automatically detects and documents every Ethernet and IP address that attempts access the network, enforcing centrally defined policies in real-time with the ability to block unauthorized devices from communicating through the network.

IPScan helps secure networks against internal breaches, prevents inadvertent network disruptions from address conflicts, mitigates risks of non-compliance with regulatory requirements regarding security, corporate financial and operation information as well as increasing your IT department's operational efficiency when delivering information services.

  • DHCP Server

    · Real-time IP/MAC asset management
    · Static IP device control
    · IP conflict protection
    · IP change protection
    · Unused IP blocking
    · Time-based IP usage control

  • Agentless NAC

    · Authorized pool management for internal users
    · Unauthorized pool management for external & temporary users
    · Fixed DHCP IP allocation Access time control for temporary users
    Auto-blocking of Static IP in the DHCP IP range

IP Address Management

· Agentless & out of band
· Non 802.1x based
· Real-time layer 2 IP/MAC control
· Unauthorized device blocking
· Time-based usage control
· User identification management by IP/MAC Switch port control & management

Major Functions

Easy Implementation

· No need to apply PC based agent program
· No need for network upgrade (802.1x)
· User-friendly control interface
· Supports 802.1q to manage multi-VLAN environment

Providing advanced DHCP server features

· Embedded DHCP function
· Controls entire range of IP devices, regardless of IP management environment

Real-time Management

· Real-time IP/MAC inventory status
· Real-time alarm events
· Real-time blocking and authentication
· Real-time IP conflict monitoring

Layer 2 Access Control Solution

· Controls devices regardless of operating system
· Agentless control solution Controls network devices (Switch, Router, IPT, etc.)

Operating Environments

IPScan XE Server & DBMS Hardware Recommendations

5,000 users5,001 ~ 20,000 users 20,001 ~ 30,000 users30,001 ~50,000 users
Configuration Integrated XE Server with DBMS Integrated XE Server with DBMS Integrated XE Server with DBMS Set upon agreement
CPU Xeon 3.0GHz or faster Xeon 3.0GHz Dual or faster Xeon 3.0GHz Quad or faster Xeon 3.0GHz Quad x2 or faster
Memory 4Gbyte or more 8Gbyte or more 16Gbyte or more 32Gbyte or more
HDD 500Gbyte (SATA) or more 500Gbyte (SCSI) or more 1Tbyte (SCSI) or more 1Tbyte (SCSI) or more
HDD 500Gbyte (SATA) or more 500Gbyte (SCSI) or more 1Tbyte (SCSI) or more 1Tbyte (SCSI) or more
NIC 100/1000Mbps 100/1000Mbps 100/1000Mbps Set upon agreement
OS Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
DBMS MS SQL Express - - -
MS SQL 2012, MS SQL 2014, MS SQL 2016, MS SQL 2017, MS SQL 2019
MySQL 5.5, MySQL 5.6 - - -
Oracle 11g, Oracle 11g R2, Oracle 12c
