IPScan NAC

Network Access Contol

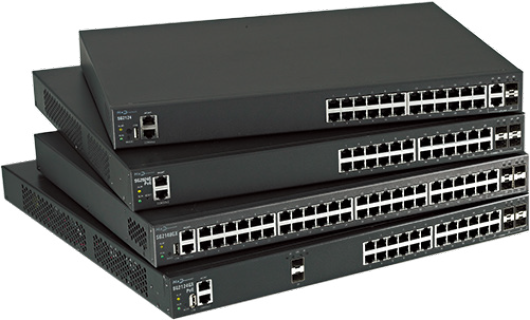

SG2100 SERIES

SG2100 SERIES

Optimal security function, intuitive network operation SG Security Switch detects and blocks security threats that occur inside the network It is a next-generation network internal security solution that improves service stabilization and operational convenience.

Block Network Attack

Through traffic analysis of Layer2~Layer4 Block DoS / DDoS, Spoofing, SCAN, Flooding Attack

Block cable looping detection

It is possible to prevent the failure by automatically blocking the port where the looping occurred, and to quickly handle the failure by checking the location and port in real time through the bundled network monitoring software ’VNM’

Major Functions

Equipped with an engine dedicated to harmful traffic analysis

The MDS engine analyzes traffic based on behavior and automatically detects and blocks harmful traffic without compromising the performance of the switch.

Selective blocking and prevention of harmful traffic

SG Security Switch allows normal packets and selectively blocks only abnormal packets to provide continuity of service.

Easy security setup

Unlike the existing solution, SG security switch does not require complicated configuration.

Provides full compatibility with heterogeneous switches

It provides high reliability by using the world-recognized AVAGO (Broadcom) switch chip, and provides excellent compatibility with heterogeneous products by supporting standard protocols.

Free network monitoring software

Network switches that are widely distributed in the network can be easily managed from one screen.

SG Security Switch Product Specifications

SG2128GL SG2128G SG2152G SG2128GX SG2128GXF SG2152GX
Hardware MAC Capacity (K) 32 32 32 32 32 32
Power Supply 1 1 1 1+1(Modular)
Interface 10/100/1000 Base-T 4 4 4 24 12(Combo) 48
1000 Base-X 4 4 4 4 (Modular) / 4 (Combo) 24 4 (Modular) / 4 (Combo)
10G N/A 4 (Modular)
Max Available Port 28 28 52 28 28 52
Material Power consumption (W) 40.9 43 65 48 48 80
Width (mm) 440
Height (mm) 44
Depth (mm) 320 420
Weight (kg) (Single/Dual) 3.6 3.6 4.3 5.8(6.9) 6.0(7.1) 6.3(7.4)
