Excellent performance and great expansion

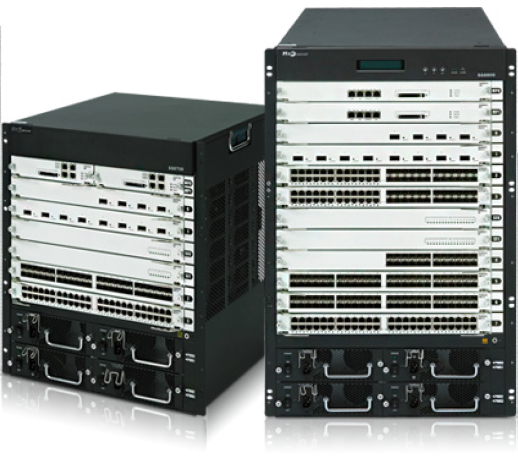

SG8000 series are bundle type of backbone switch with
distributed network architecture of ASIC + NP to ensure the highest reliability.
Maximized performance through Non-STP configuration
The Virtual Stacking technology utilizes all link resources for redundant configuration (Active-Active) so that
whole system capacity can be expanded and failure recovery
capability can be improved for the business continuity.
Flexibility to meet diverse demands and needs
A variety of interface modules are supported in order to meet different customer environment and PoE function is also supported.
The 24T24F module reduces unnecessary port consumption for the customer and provides great flexibility
(UTP 24 ports, optical 24 ports).
Easy maintenance
Hardware status can be monitored through the front LED. It can also
be monitored by VNM(Visual Node Manager) which is a management
software for security switch and backbone switch.
Major Functions
Tbps performance with regards to high performance architecture
The backbone switch has 2Tbps switching capacity and 1,047Mpps throughput with diverse port density
– 256 x 10G, 384 x 1G. It also ensure the full wired speed with non-blocking architecture and shows no
performance degradation under IPv4 and IPv6 network.
High availability based on distributed architecture
The architecture of ASIC+NP provides great reliability and has full redundant system structure
(management, fabric and power).
Advanced functions
It implements advanced functions such as IPv4, IPv6 (Static/Dynamic) Full Routing / Multi-VRF,
MPLS L2 / L3 VPN function / Switch Virtual Clustering (through virtual stacking) with default license.
Intelligent Security
The network is protected by preventing cable-looping.
It provides MAC, IP and MAC+IP based user authentication along with L2~L4 ACL
Easy maintenance
Hardware status can be monitored through the front LED. It can also be monitored by
VNM (Visual Node Manager) which is a management software for security switch and backbone switch.
