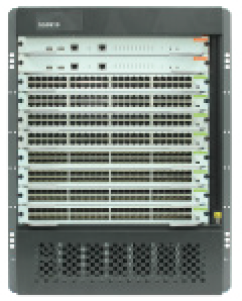

SG9900 Series

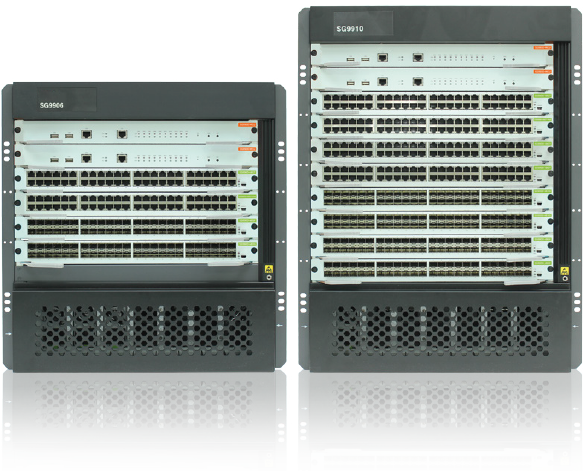

SG 9906 / SG 9910

Excellent performance and high scalability
The SG9900 series has a distributed architecture
Adopting Full Redundant High Speed Bus, high stability and Provides switching performance of up to 10Tbps to ensure the reliability of Dara Flow.

Reasonable price and investment protection

By adding a PoE card to the current UTP module, the IPT/UC/WLAN network can be established. Advanced functions such as Multi-VRF and MPLS VPN can be also provided without additional licensing cost.

Maximized performance through Non-STP configuration

The Virtual Stacking technology utilizes all link resources for redundant configuration (Active-Active) so that whole system capacity can be expanded and failure recovery capability can be improved for the business continuity.

Major Functions

High switching performance of 10Tbps

Maximum 10bps switching capacity and 5.713Mpps packet throughput, up to 32 100G ports and 384 10G ports Boasting and guarantee full wired speed by non- blocking architecture.

High availability due to dispersion structure

Adoption of ASIC+NP’s distributed architecture ensures high reliability and is a full redundancy system structure (management, fabric, power).

Network virtualization

Virtual Stacking technology virtualizes two physical devices into one logical device It increases the availability of resources and realizes fast failover of non-spanning tree composition.

Provides full compatibility with heterogeneous switches

From network looping and blocking harmful traffic, it prevents user mistakes and malicious traffic. Protect your network.

IPv6 support

Hardware-based processing for IPv6 provides the same switching function without performance degradation compared to IPv4.
Supports perfect network configuration from IPv4/IPv6 Dual Stack to IPv6 transition.

SG Backbone Specifications

  • SG 9906

  • SG 9910

SG9906SG9910
Performance Switching Capacity 5Tbps 10Tbps
Hardware All Slot 10 14
Management module slot 2 2
Fabric module Slot 4 4
I/O module Slot 4 8
Power Supply 7 7
Interface 10/100/1000 Base-t 192 384
1000Base-X 192 384
10Gbase-X 192 384
40Gbase-X 32 64
10Gbase-X 16 32
